Guardian RCC50

High specification industrial reciprocating compressor control unit. Developed and improved over the last 30 years. Rugged design, installed and operating in challenging environments around the world.

Product Detail

The Guardian RCC50 Reciprocating Compressor Controller provides automatic start up and capacity control for a single screw compressor controller. The control set point can be chosen from suction pressure or process temperature. Menu settings are available for control of pumps, motor, loading valves, bypass valve, crankcase heater and oil coolant valve. Configuration can be done locally or remotely via RS485 or TCP/IP.

Key Benefits

  • Single or two stage control with immediate pressure.
  • Simultaneous SNMP and RS485
  • Developed and improved over 30 years
  • Proven operation in harsh environments

Features

Automatic control of motor, capacity, oil cooling & heater.
Single or two stage control with immediate pressure.
Variable speed compressor motor and fan condenser control.
Alarm, trip and status monitoring of all variables.
Simultaneous SNMP and RS485 MODBUS protocols.

Features

Suction pressure or process temperature control.
Motor Amps alarms, display and automatic capacity unload.
Fault input displays for all compressor safety inputs.
Multi compressor operation on the same suction line.
Clear and simple LED display panel.

Options

Full Kit in Wallbox.

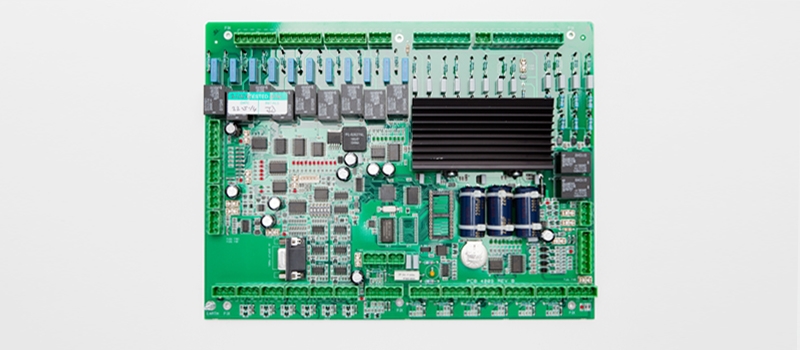

Board, Display & Cable.
Board or Display.
English Membrane Only.
Transducers.
Temperature Sensors.
